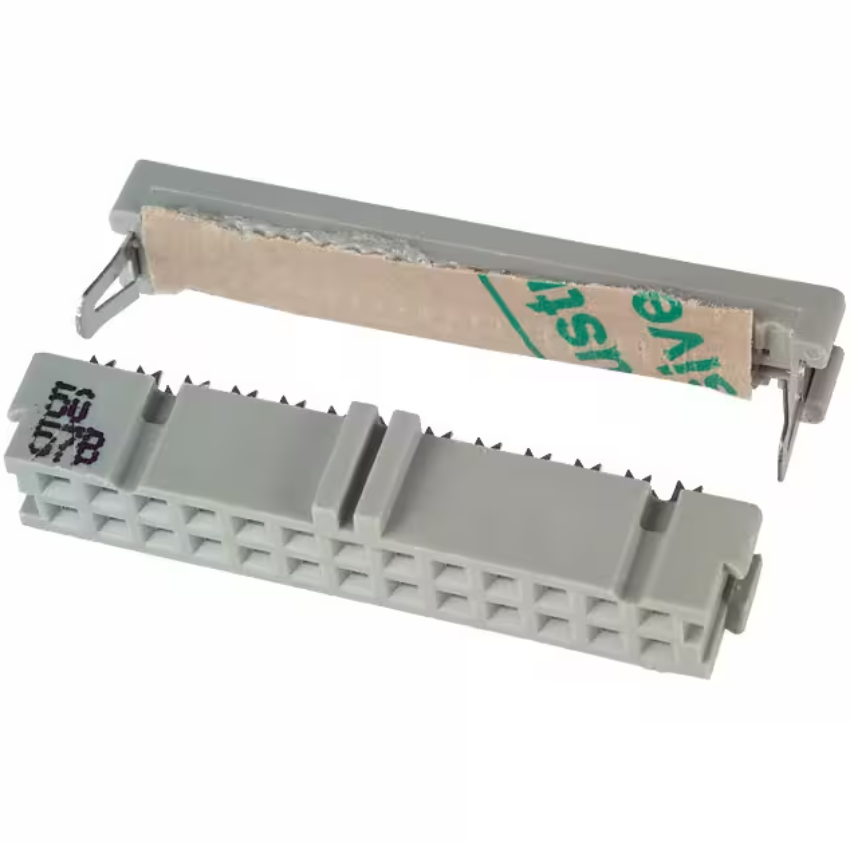

3399-6600
- Manufacturer's number
- Manufacturer 3M
- Detailed CONN RCPT 26P IDC 26-28AWG GOLD
- Detailed Description 26 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG, Stranded or Solid
Documents & Media
Documents & Media
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | |
| Product Training Modules | IDC Wiremount Connectors Primer |
| CAD Models |
|
| PCN Part Number | Mult Devs - SKU # update 24/JUN/2021 |
| HTML Datasheet | 3000 Series Wiremount Socket Datasheet |
Product Attributes
|
TYPE
|
DESCRIPTION
|
SELECT
|
|---|---|---|
|
Category
|
|
|
|
Mfr
|
3M
|
|
|
Series
|
|
|
|
Package
|
Bulk
|
|
|
Product Status
|
Active
|
|
|
Connector Type
|
Receptacle
|
|
|
Contact Type
|
Female Socket
|
|
|
Number of Positions
|
26
|
|
|
Pitch
|
0.100" (2.54mm)
|
|
|
Number of Rows
|
2
|
|
|
Row Spacing
|
0.100" (2.54mm)
|
|
|
Mounting Type
|
Free Hanging (In-Line)
|
|
|
Fastening Type
|
-
|
|
|
Cable Termination
|
IDC
|
|
|
Wire Type
|
Ribbon Cable
|
|
|
Wire Gauge
|
26-28 AWG, Stranded or Solid
|
|
|
Features
|
Feed Through, Polarizing Key
|
|
|
Contact Finish
|
Gold
|
|
|
Contact Finish Thickness
|
30.0µin (0.76µm)
|
|
|
Color
|
Gray
|
|
|
Base Product Number
|
|
