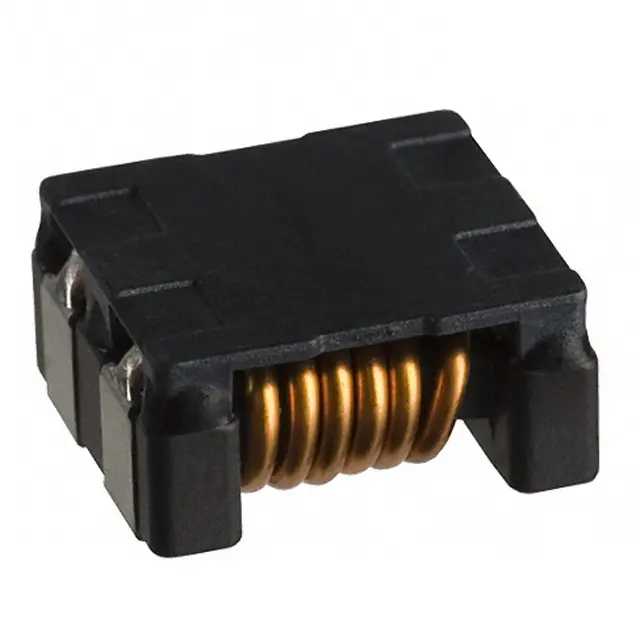

ACM12V-701-2PL-TL

Documents & Media
Documents & Media
Datasheets ACM12V Series
Mfg CAD Models ACM12V-701-2PL-TL00.stp
EDA / CAD Models ACM12V-701-2PL-TL00 by SnapEDA
Online Catalog ACM-V Series
Product Attributes
TYPE DESCRIPTION SELECT ALL
Categories Filters
Common Mode Chokes
Manufacturer TDK Corporation
Series ACM-V
Packaging Tape & Reel (TR)
Part Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 700 Ohms @ 100MHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 6mOhm
Voltage Rating - DC 80V
Voltage Rating - AC -
Operating Temperature -40°C ~ 125°C
Ratings AEC-Q200
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.472" L x 0.433" W (12.00mm x 11.00mm)
Height (Max) 0.236" (6.00mm)
Package / Case Horizontal, 4 J-Lead
Environmental & Export Classifications
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Additional Resources
Standard Package  500
Other Names 445-4083-2
ACM12V7012PLTL00
