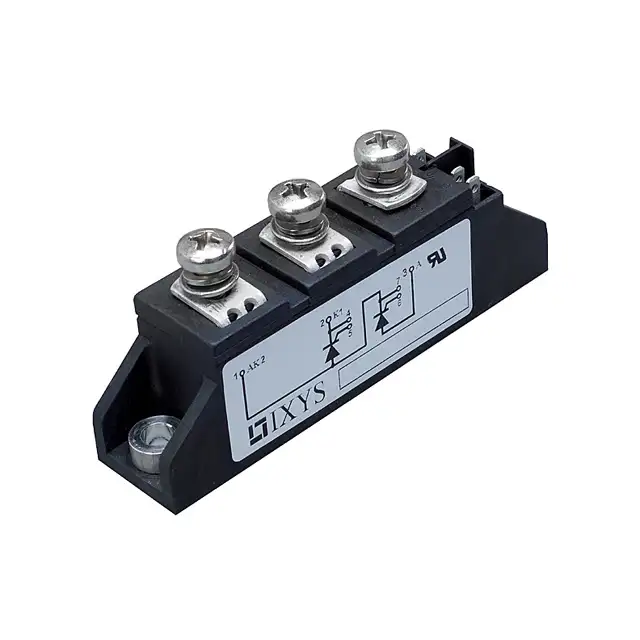

MCC19-08IO1B

Documents & Media
Datasheets MCC19-08IO1B
Other Related Documents SCR Module Selection Guide
Product Attributes
TYPE DESCRIPTION SELECT ALL
Categories
Manufacturer IXYS
Series -
Packaging Bulk
Part Status Active
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 800V
Current - On State (It (AV)) (Max) 25A
Current - On State (It (RMS)) (Max) 40A
Voltage - Gate Trigger (Vgt) (Max) 1.5V
Current - Gate Trigger (Igt) (Max) 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 400A, 420A
Current - Hold (Ih) (Max) 200mA
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case TO-240AA
Base Part Number MC*19

Environmental & Export Classifications
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
California Prop 65
Additional Resources
Standard Package  36
