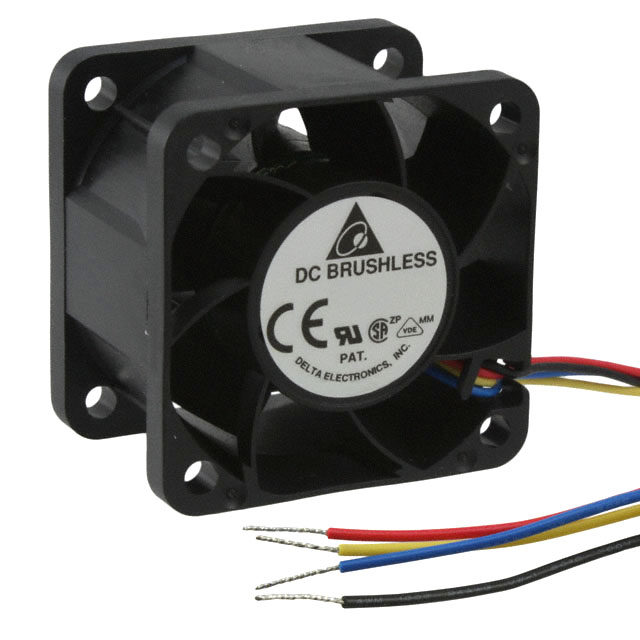

FFB0424VHN-TZT4

Documents & Media
Datasheets FFB0424VHN-TZT4 Spec

Other Related Documents Fans, Blowers CSA Cert
Fans, Electric - Component UL Cert
Fans VDE Cert
FFB0424VHN-TZT4 MTBF Report

Product Training Modules Fan Options

Environmental Information Fans Cert of Compliance-RoHS

Featured Product Pulse-Width Modulation (PWM) Technology Fans

Mfg CAD Models FFB0424VHN-TZT4.stp

Online Catalog FFB Series
Product Attributes
TYPE DESCRIPTION SELECT ALL
Categories
Manufacturer Delta Electronics
Series FFB
Part Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 40mm L x 40mm H
Width 28.00mm
Air Flow 15.8 CFM (0.442m³/min)
Static Pressure 0.509 in H2O (126.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 41.9 dB(A)
Power (Watts) 2.4W
RPM 9500 RPM
Termination 4 Wire Leads
Ingress Protection -
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.071 lb (32.21 g)
Current Rating (Amps) 0.100A
Voltage Range 21.6 ~ 26.4VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C

Environmental & Export Classifications
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)

Additional Resources
Standard Package  288
Other Names 603-1818
