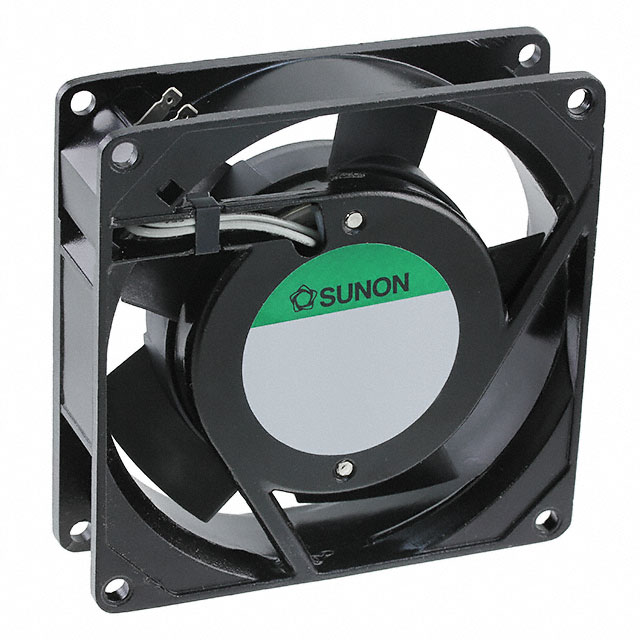

SF11592A-1092MBT.GN

Documents & Media
Datasheets SF11592A-1092MBT.GN Spec Sheet
AC Axial Fan, Blower Catalog

Environmental Information RoHS Certificate

Online Catalog SF and SP Series
Product Attributes
TYPE DESCRIPTION SELECT ALL
Categories Fans, Thermal Management
AC Fans
Manufacturer Sunon Fans
Series SF
Part Status Active
Voltage - Rated 115VAC
Size / Dimension Square - 91.5mm L x 91.5mm H
Width 25.50mm
Air Flow 28.0 CFM (0.784m³/min)
Static Pressure 0.110 in H2O (27.4 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features -
Noise 33.0 dB(A)
Power (Watts) 6.00W
RPM 2100 RPM
Termination 2 Terminals
Ingress Protection -
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CUR, TUV, UL
Weight 0.617 lb (280.00 g)
Current Rating (Amps) 0.060A
Voltage Range 85 ~ 125VAC
Material - Frame Aluminum
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 42000 Hrs @ 40°C

Environmental & Export Classifications
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)

Additional Resources
Standard Package  1
Other Names 259-1905
SF11592A 1092MBT.GN
SF11592A-1092MBT.GN-ND
SF11592A1092MBT.GN
