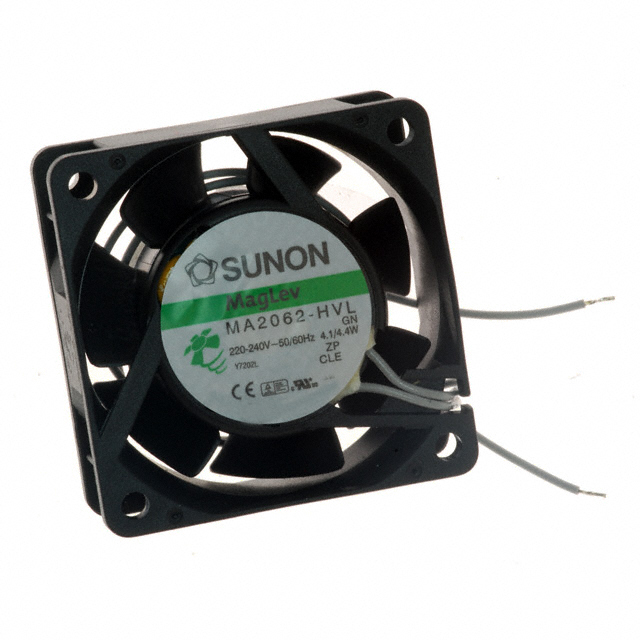

MA2062-HVL.GN

Documents & Media
Datasheets MA2062-HVL.GN Spec Sheet
MA 60x60x25mm

Environmental Information RoHS Certificate

Online Catalog MagLev® Series
Product Attributes
TYPE DESCRIPTION SELECT ALL
Categories Fans, Thermal Management
AC Fans
Manufacturer Sunon Fans
Series MagLev® MA
Part Status Active
Voltage - Rated 220 ~ 240VAC
Size / Dimension Square - 60mm L x 60mm H
Width 25.00mm
Air Flow 18.0 CFM (0.504m³/min)
Static Pressure 0.200 in H2O (49.8 Pa)
Bearing Type Vapo-Bearing™
Fan Type Tubeaxial
Features -
Noise 31.0 dB(A)
Power (Watts) 4.40W
RPM 4200 RPM
Termination 2 Wire Leads
Ingress Protection -
Operating Temperature -
Approval Agency CUR, TUV, UL
Weight 0.18 lb (81.65 g)
Current Rating (Amps) 0.211A
Voltage Range -
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade -
Lifetime @ Temp. -

Environmental & Export Classifications
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)

Additional Resources
Standard Package  50
Other Names 259-1430
MA2062-HVL GN
MA2062-HVLGN
MA2062HVLGN
