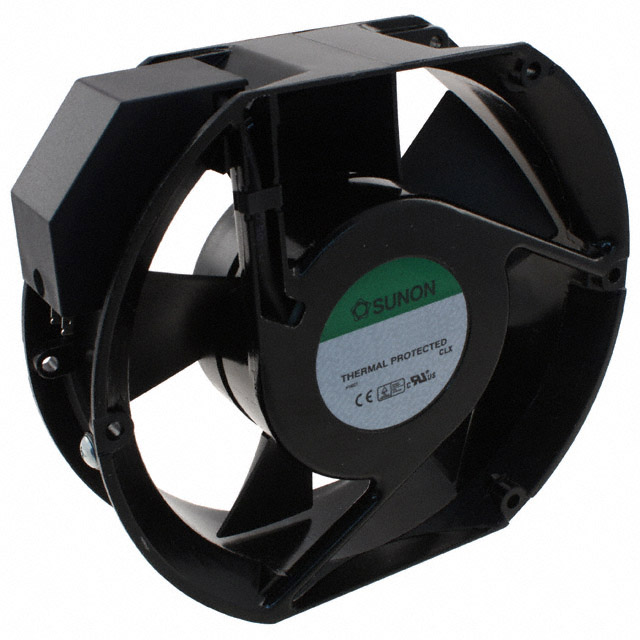

A1175-HBT.TC.GN

Documents & Media
Datasheets A1175-HBT.TC.GN Spec Sheet
A1175-HBT Spec Sheet
AC Axial Fan, Blower Catalog

Environmental Information RoHS Certificate

Featured Product Alveolate Motor AC Fan Series

Online Catalog A Series
Product Attributes
TYPE DESCRIPTION SELECT ALL
Categories Fans, Thermal Management
AC Fans
Manufacturer Sunon Fans
Series A
Part Status Active
Voltage - Rated 115VAC
Size / Dimension Rectangular/Rounded - 171.5mm L x 151mm H
Width 51.00mm
Air Flow 239.0 CFM (6.69m³/min)
Static Pressure 0.690 in H2O (171.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features -
Noise 58.0 dB(A)
Power (Watts) 27.00W
RPM 3200 RPM
Termination 2 Terminals
Ingress Protection -
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CUR, TUV, UL
Weight 2 lbs (907.2 g)
Current Rating (Amps) 0.230A
Voltage Range 75 ~ 125VAC
Material - Frame Aluminum
Material - Blade Polycarbonate (PC)
Lifetime @ Temp. -

Environmental & Export Classifications
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)

Additional Resources
Standard Package  12
Other Names 259-1307
A115H2A0B1TTGRN
A1175-HBT TC.GN
A1175-HBT-TC.GN
A1175-HBTTC.GN
A1175HBTTCGN
