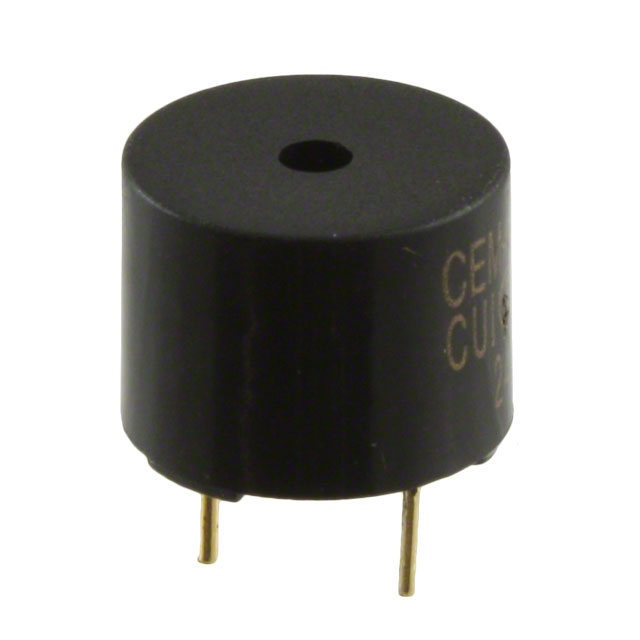

CEM-1206S

Manufacturer's number CEM-1206S
Manufacturer CUI Devices
Detailed AUDIO MAGNETIC XDCR 3-8V TH
Detailed Description Buzzers Transducer, Externally Driven Magnetic 5V 45mA 2.4kHz 85dB @ 5V, 10cm Through Hole PC Pins

Documents & Media

Datasheets	CEM-1206S
Application Notes	Understanding and Measuring Sensitivity in Audio Components Buzzer Basics
Product Training Modules	Buzzer Overview
Environmental Information	CEM-1206S Cert of RoHS
Design Resources	Buzzer SPL Calculator
Featured Product	Buzzers and Audio Alerts Audio Solutions
Mfg CAD Models	CEM-1206S - 3D Model CEM-1206S - PCB Footprint
EDA / CAD Models	CEM-1206S by SnapEDA
Online Catalog	CEM Series

Product Attributes

TYPE	DESCRIPTION	SELECT ALL
Categories	Audio Products
Categories	Alarms, Buzzers, and Sirens
Manufacturer	CUI Devices
Series	CEM
Packaging	Tray
Part Status	Active
Driver Circuitry	Transducer, Externally Driven
Input Type	Zero-Peak Signal
Voltage - Rated	5V
Voltage Range	3 ~ 8V
Frequency	2.4kHz
Technology	Magnetic
Operating Mode	Single Tone
Duration	-
Sound Pressure Level (SPL)	85dB @ 5V, 10cm
Current - Supply	45mA
Port Location	Top
Operating Temperature	-30°C ~ 70°C
Approval Agency	-
Ratings	Washable
Mounting Type	Through Hole
Termination	PC Pins
Size / Dimension	0.472" Dia (12.00mm)
Height - Seated (Max)	0.394" (10.00mm)

Environmental & Export Classifications

RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Additional Resources

Standard Package	500
Other Names	037-4205R 102-1155 CEM1206S SEM-1206S SEM1206S
